HLSPL08 PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner

Product Details

Place of Origin: Haining,Zhejiang,China

Brand Name: Hanlong

Certification: GRS, BSCI,ISO9001,Authentic and traceable

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Craft Paper Or Hard Tupe Package

Delivery Time: 15-20 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 100,000.00--150,000.00 sqm meters per day

Get Best Price
Contact Now
Specifications
Highlight:

PVC Swimming Pool Liner Tear Resistant

,

PVC Swimming Pool Liner 1.5MM

,

PVC Raindrop Pool Liner

Name:
PVC Swimming Pool Liner
Color:
Blue
Application:
Swimming Pool
Name:
PVC Swimming Pool Liner
Color:
Blue
Application:
Swimming Pool
Description

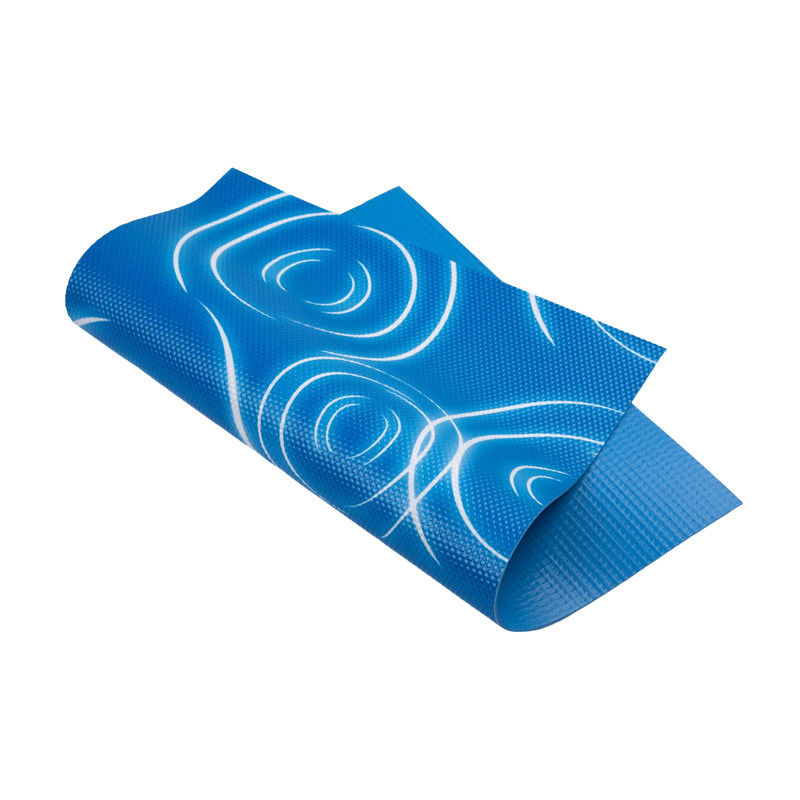

HLSPL08 PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner

HLSPL08 1.5MM PVC Rain Drop Pattern Swimming Pool Vinyl Liner Bacterial Resistance

Features of PVC Swimming Pool Liner Fabric


Our PVC swimming pool liner fabric is made from a reinforced, glossy, calendered flexible PVC film. The stabilization system is free of heavy metals, ensuring both quality and safety. It comes with effective UV stabilization, protecting it from the detrimental effects of ultraviolet rays. We also provide the option to develop different color schemes, thicknesses, and embossed textures based on customer specifications. Our dedicated OEM production service is ready to bring your customized ideas to life.

The PVC formulation is the key determinant of the tarpaulin's weather - beating capacity, lifespan, and compatibility with different applications. By adding functional additives to the PVC coating, the material acquires a range of outstanding features:
▶ Flame - resistant property, making it suitable for use in building materials and interior decor
▶ UV - resistant feature, which prevents the material from deteriorating and losing color under strong sunlight
▶ Bacteria - repellent characteristic, providing protection in pest - prone and humid environments
▶ Chemical - resistant ability, enabling it to function well in acidic and alkaline surroundings
▶ Anti - static property, useful in the manufacturing of mine ventilation ducts
▶ High - degree flexibility, allowing the tarpaulin to withstand repeated folding, unfolding, and bending processes


Broad Application of PVC Swimming Pool Liner Fabric



Whether it's for building or refurbishing residential and private pools, our liners can be customized and installed with ease. In public swimming pool settings, such as community pools, hotels, and water parks, they are capable of withstanding high - traffic usage and covering large areas. For temporary or mobile pool types like inflatable and kiddie pools, our liners support quick assembly and convenient storage. In aquaculture and landscape ponds, they offer waterproofing, resist microbial growth, and help keep the water clean. In industrial tanks used for chemicals or sewage, they serve as a reliable, corrosion - resistant, and leak - proof lining. Special pools, including hot springs, saltwater pools, and spas, can utilize our liners, as they can adapt to the unique water and temperature conditions.



Specifications of PVC Swimming Pool Liner Fabric

General Properties

PropertyUnitStandardTypical Value
Surfaceg/m²EN ISO 1849-21850 ± 5%
Water Absorption% (Weight)EN ISO 62 Method 1≤ 1
Available Widthmm-1500-1830



Physical Properties

PropertyUnitStandardTypical Value
Thickness Over EmbossmmEN 1849-21.5 ± 5%
Elongation at Break%EN 12311-2 Method A15 ≤ E ≤ 30
Tensile Strength at BreakN/50mmEN 12311-2 Method A≥ 1100
Peel ResistanceN/50mmEN 12316-2≥ 80
Tear StrengthNEN 12310-2≥ 180
Dimensional Stability%EN 1107-2≤ 0.5
Foldability at Low Temperature°CEN 495-5-25
Welding Peel ResistanceN/50mmEN 12316-2≥ 80



Reinforcement (100% PES)

PropertyUnitStandardTypical Value
Construction (warp, weft)thr/cm-2.8
Weightg/m²-93
Fabric TexTex-110



Durability

PropertyUnitStandardTypical Value
Artificial Ageing (6000h)Grey scaleEN ISO 4892-2:2006 Method A, cycle 1
EN 20105-A02
≥ 3
Microorganism Resistance% (Weight loss)EN ISO 846:1997 Method D≤ 1
Bacterium Resistance-EN ISO 846:1997 Method C
Strain: ATCC 25607
No Staining
Chlorine ResistanceGrey ScaleEN 15836-2 Annex C≥ 3
Staining Agent ResistanceDegreeEN 15836-2 Annex D≥ 4
Abrasion Resistance-EN ISO 5470-1Pass
Temperature Resistance°CEN 15836-2≤ 32



Processing & Storage

CategoryPropertyComments
ProcessingHot Air WeldingOptimization needed depending on machine
Storage & HandlingStorage TemperatureIndoor storage at room temperature (max. 23°C)
 Storage TimeRecommended ≤ 18 months after production date
 Processing TemperatureStore at room temperature (max. 23°C) for ≥24h before processing


HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 0
HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 1
HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 2
HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 3
HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 4
HLSPL08  PVC Swimming Pool Liner Tear Resistant 1.5MM PVC Raindrop Pool Liner 5

FAQ

Q : What are your main products?
A : We focus on PVC tarpaulin, Industrial tarpaulin, Inflatable boat fabric, PVC mesh fabric, PVC mesh fabric, Functional fabric, Flex banner, etc.
Q : What is your delivery time?
A : It depends on your ordered item and quantity. Normally, we can finish the bulk products within 25 days.

Q : What is your MOQ?
A :lt depends on your requirements, Flexible materials 3000 meters.
Q :Can I request free samples?
A :Yes, of course. We can offer normal color and thickness samples to you free of charge. But with freight cost collection.
Q :What are the payment terms you can accept?
A:Our Payment Terms are 30% TT in advance,70% balance against BL copy , and L/C At Sight.
Q :What's the shipping way?
A :
1.For small orders, We will suggest sending them by DHL, UPS, or another cheap express so that you can get the products fast and
safely.
2.For big orders, we can deliver them according to the client's requests.
Q :How to ensure order quality?
A :
1. Quality is a priority! Every worker and QC keeps the QC from the very beginning to the very end:
2. All materials we used passed the strength test.
3. Skillful workers care for every detail in the sewing, printing, stitching, and packing process;
