HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static

Product Details

Place of Origin: Haining,Zhejiang,China

Brand Name: Hanlong

Certification: GRS, BSCI,ISO9001,Authentic and traceable

Model Number: HLSPL010

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Craft Paper Or Hard Tupe Package

Delivery Time: 15-20 days

Supply Ability: 100,000.00--150,000.00 sqm meters per day

Get Best Price
Contact Now
Specifications
Highlight:

Rectangular PVC Swimming Pool Liner

,

PVC Swimming Pool Liner Anti Static

Name:
PVC Swimming Pool Liner
Surface:
Smooth, Embossed Or Customized
Tear Resistance:
High
Material:
PVC
Usage:
Indoor/Outdoor
Pattern:
Kinds Of
Chemical Resistance:
Yes
Thickness:
1.5MM
Shape:
Rectangular
Name:
PVC Swimming Pool Liner
Surface:
Smooth, Embossed Or Customized
Tear Resistance:
High
Material:
PVC
Usage:
Indoor/Outdoor
Pattern:
Kinds Of
Chemical Resistance:
Yes
Thickness:
1.5MM
Shape:
Rectangular
Description

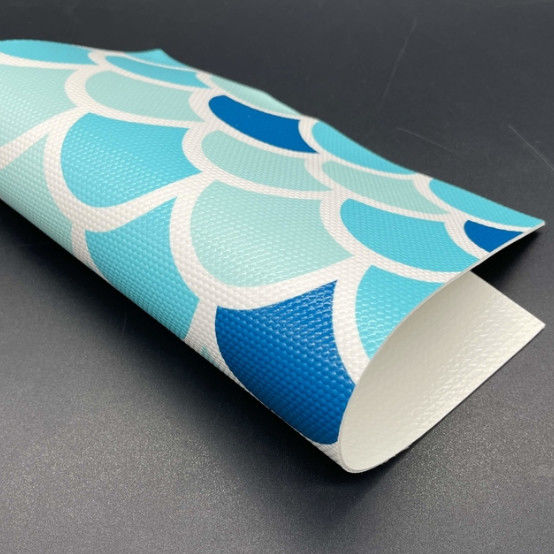

HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static

HLSPL010 1.5MM Swimming Pool Vinyl Liner PVC Fish Scale Print Pattern Anti Static

Premium Features of PVC Swimming Pool Liner Fabric


Our PVC swimming pool liner fabric is crafted from a reinforced, polished, and calendered flexible PVC film. The stabilization system employed is devoid of heavy metals, ensuring top - notch quality. With efficient UV stabilization, it can resist the damaging effects of the sun's rays. We offer the service of custom - developing different colors, thicknesses, and embossed patterns according to your preferences, and our OEM production service can be adjusted to meet your exact needs.
The PVC formulation has a significant impact on the tarpaulin's weather - resistance, durability, and application compatibility. By adding functional additives to the PVC coating, the material gains the following excellent properties:
▶ Fire - resistant characteristic, making it suitable for use in building materials and interior design
▶ UV - resilient feature, which prevents the material from degrading and fading under strong sunlight
▶ Bacteria - resistant property, providing protection in pest - infested and humid environments
▶ Chemical - resistant trait, allowing it to function properly in acidic and alkaline conditions
▶ Anti - static feature, useful for the manufacturing of mine ventilation ducts
▶ Superior flexibility, enabling the tarpaulin to withstand repeated folding, unfolding, and bending operations


Versatile Application of PVC Swimming Pool Liner Fabric



When it comes to the construction or renovation of residential and private pools, our liners are customizable and easy to install. In public pool environments, such as community pools, hotels, and water parks, they can handle high - volume usage and large - area coverage. For temporary or mobile pools, like inflatable and kiddie pools, our liners enable quick assembly and convenient storage. In aquaculture and landscape ponds, they offer waterproofing, resist microbial growth, and help maintain clean water. In industrial tanks for chemicals and sewage, they serve as a corrosion - resistant and leak - proof lining. Special pools, including hot springs, saltwater pools, and spas, can also benefit from our liners, as they can adapt to the unique water and temperature conditions.



Specifications of PVC Swimming Pool Liner Fabric

General Properties

PropertyUnitStandardTypical Value
Surfaceg/m²EN ISO 1849-21850 ± 5%
Water Absorption% (Weight)EN ISO 62 Method 1≤ 1
Available Widthmm-1500-1830



Physical Properties

PropertyUnitStandardTypical Value
Thickness Over EmbossmmEN 1849-21.5 ± 5%
Elongation at Break%EN 12311-2 Method A15 ≤ E ≤ 30
Tensile Strength at BreakN/50mmEN 12311-2 Method A≥ 1100
Peel ResistanceN/50mmEN 12316-2≥ 80
Tear StrengthNEN 12310-2≥ 180
Dimensional Stability%EN 1107-2≤ 0.5
Foldability at Low Temperature°CEN 495-5-25
Welding Peel ResistanceN/50mmEN 12316-2≥ 80



Reinforcement (100% PES)

PropertyUnitStandardTypical Value
Construction (warp, weft)thr/cm-2.8
Weightg/m²-93
Fabric TexTex-110



Durability

PropertyUnitStandardTypical Value
Artificial Ageing (6000h)Grey scaleEN ISO 4892-2:2006 Method A, cycle 1
EN 20105-A02
≥ 3
Microorganism Resistance% (Weight loss)EN ISO 846:1997 Method D≤ 1
Bacterium Resistance-EN ISO 846:1997 Method C
Strain: ATCC 25607
No Staining
Chlorine ResistanceGrey ScaleEN 15836-2 Annex C≥ 3
Staining Agent ResistanceDegreeEN 15836-2 Annex D≥ 4
Abrasion Resistance-EN ISO 5470-1Pass
Temperature Resistance°CEN 15836-2≤ 32



Processing & Storage

CategoryPropertyComments
ProcessingHot Air WeldingOptimization needed depending on machine
Storage & HandlingStorage TemperatureIndoor storage at room temperature (max. 23°C)
 Storage TimeRecommended ≤ 18 months after production date
 Processing TemperatureStore at room temperature (max. 23°C) for ≥24h before processing


HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 0
HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 1
HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 2
HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 3
HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 4
HLSPL010 Rectangular PVC Swimming Pool Liner Fish Scale Print Pattern Anti Static 5

FAQ

Q : What are your main products?
A : We focus on PVC tarpaulin, Industrial tarpaulin, Inflatable boat fabric, PVC mesh fabric, PVC mesh fabric, Functional fabric, Flex banner, etc.
Q : What is your delivery time?
A : It depends on your ordered item and quantity. Normally, we can finish the bulk products within 25 days.

Q : What is your MOQ?
A :lt depends on your requirements, Flexible materials 3000 meters.
Q :Can I request free samples?
A :Yes, of course. We can offer normal color and thickness samples to you free of charge. But with freight cost collection.
Q :What are the payment terms you can accept?
A:Our Payment Terms are 30% TT in advance,70% balance against BL copy , and L/C At Sight.
Q :What's the shipping way?
A :
1.For small orders, We will suggest sending them by DHL, UPS, or another cheap express so that you can get the products fast and
safely.
2.For big orders, we can deliver them according to the client's requests.
Q :How to ensure order quality?
A :
1. Quality is a priority! Every worker and QC keeps the QC from the very beginning to the very end:
2. All materials we used passed the strength test.
3. Skillful workers care for every detail in the sewing, printing, stitching, and packing process;
