Product Details:
Payment & Shipping Terms:
|
| Material: | Polyester Base Cloth & PVC | Supply Type: | Make To Order |
|---|---|---|---|
| Technics: | Woven | Weight: | 450g/m2 |
| Yarn: | 1000d*1000d | Density: | 9*7 |
| Color: | Yellow, Black, Customized | Flame Retardant: | B1 |
| Anti-static: | ≤1.e8 Ω | Product Name: | PVC Ventilation Duct, Flexible Duct |
| High Light: | 450gsm Mining Ventilation Ducting,Flame Retardant Mining Ventilation Ducting,1000d PVC vinyl duct hose |
||
Technical Date sheet
| Description | Unit | Test Method | Value |
| Total Weight | g/m² | DIN53352 | 450 |
| Base Cloth | Denier | ASTMD751 | 1000*1000 |
| Density | Thread/ inch | - | 9*7 |
| Width | m | - | 1.0-3.2, Customized |
| Length | m | - | 50, 100, Customized |
| Color | - | - | Yellow, Black, Customized |
| Tensile Strength | N/5cm | DIN53354 | 1000/1000 |
| Tear Strength | N/5cm | DIN53356 | 55/75 |
| Adhesion | N/5cm | DIN53357 | 100 |
Product Description

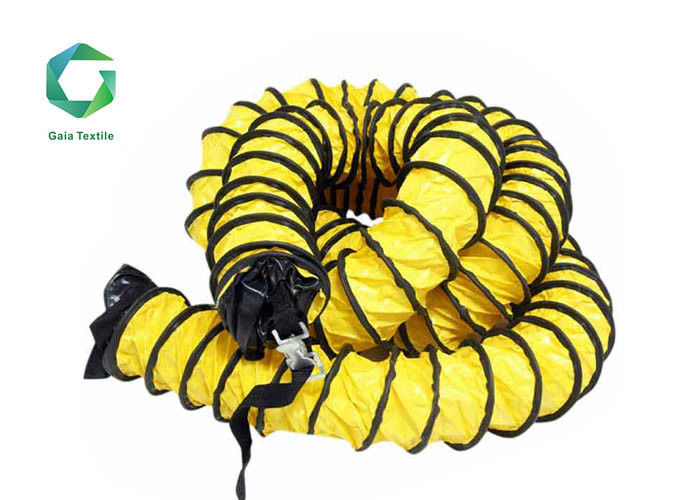

450gsm flame retardant anti-static vinyl coated fabric for PVC mining ventilation ducting
Mine/tunnel ventilation duct is to make the air flow, reduce the concentration of harmful gases in the mine/tunnel infrastructure, is the mine/tunnel ventilation engineering in the most basic equipment. At present, the mine/tunnel ventilation pipe is mainly made of adhesive cloth, which has the excellent properties of flame retardant and antistatic, waterproof, good air tightness, convenient installation, convenient cleaning, economical and practical. Our company has been engaged in the production of mine/tunnel ventilation duct tape for 6 years, the products are exported to Europe, Australia, South Africa and other countries and regions, with high quality, excellent service, and won a high reputation in the industry.
Tear resitance
waterproof
heat-resisting
cold tolerance
1. Economical and practical, the cost is much lower than steel ventilation ducts
2. Easy to install, and the installation time is much shorter than that of steel ventilation ducts
3. Light weight and good strength
4. Good flame retardant and antistatic performance
5. Economical and environmentally friendly, easy to clean, recyclable
6. Non-toxic, no peculiar smell, no dust, no broken fiber
7. No leakage, wear resistance, wind resistance, good compressive strength

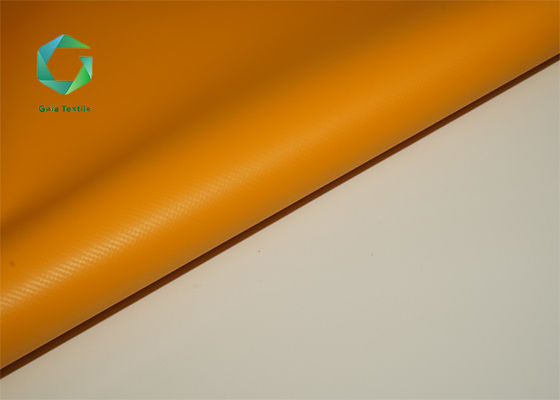

Detail of product
Packing & Delivery
Packing detail:in roll, wraped with Kraft paper (Pacaking menthod can be changed according to the clients' special requirement)
Delivery Port: Shanghai, Ningbo
Delivery: within 35days after deposit received.
Why choose us
Gaia textile, has worked in the ventilation ducting fabric for 6 years, and our team own decade of exprience. We supply ventilation ducting fabric with pretty competitive price, with high quality and best service. AndOur product is popular in the ventilation system of mining and Tunnel, in European,Australia, South Africa.
Other Product we supply
We supply all kinds of fabric customized, weight 350-2100gsm(10-62oz),yarn 200-2000d, features with anti-uv, FR, anti-mildew, anti-static, acylic/pvdf treated, etc, such as for flexible ventilation ducting, tent, inflatable boat, tension structure, pool liner, transportation tarp, flexible bladder tank, inflatable, private fence,and so on,with high quality and best service.
