Product Details:
Payment & Shipping Terms:
|
| Features: | Tear-Resistant, Flame Retardant | Material: | 100% Polyester & PVC |
|---|---|---|---|
| Supply Type: | Make To Order | Coated Type: | PVC Coated |
| Technics: | Woven | Weight: | 670g/m2 |
| Yarn: | 1300d*1300d | Density: | 12*12 |
| Product Name: | PVC Ventilation Duct, Flexible Duct | Color: | Yellow, Black, Customized |
| Highlight: | 670gsm Vinyl Vent Hose,1m Width Vinyl Vent Hose,Woven Technics plastic flexible ducting |
||

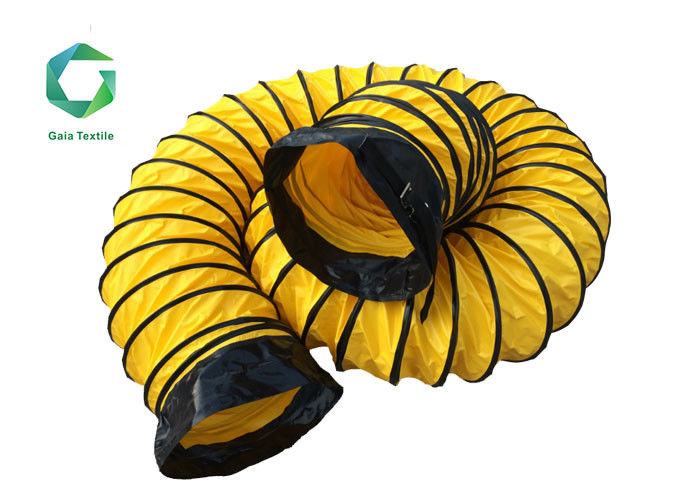

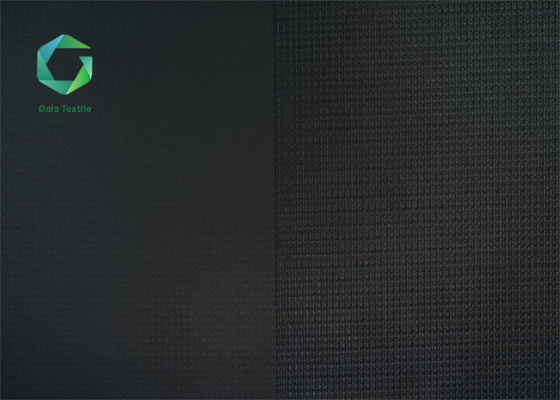

670gsm mining flame retardant anti-static vinyl coated fabric for PVC ventilation ducting
1. Mine/tunnel ventilation duct is an infrastructure for air circulation and reducing harmful gas concentration in mine/tunnel, and it is the most basic equipment in mine/tunnel ventilation engineering. At present, mine/tunnel ventilation pipes are mainly made of rubberized fabric, which has excellent properties of flame retardant and antistatic, good waterproof and airtightness, convenient installation and cleaning, and is economical and practical. Our company has been engaged in the production of tape coating for mine/tunnel ventilation pipes for 6 years. The products are exported to Europe, Australia, South Africa and other countries and regions, with good quality and excellent service, and have won a high reputation in the industry.
Tear resitance
waterproof
heat-resisting
cold tolerance
1It is economical and practical, and the cost is much lower than that of steel ventilation pipes
2. The installation is convenient, and the installation time is much shorter than that of steel ventilation pipes
3. Light weight and good strength
4. Good flame retardant and antistatic performance
5. Economic and environmental protection, easy to clean and recyclable
6. Non-toxic, odor-free, dust-free and fiber-free
7. No leakage, good wear resistance, wind resistance and compressive strength
Technical Date sheet
| Description | Unit | Test Method | Value |
| Total Weight | g/m² | DIN53352 | 650 670 |
| Base Cloth | Denier | ASTMD751 | 1300*1300 |
| Density | Thread/ inch | - | 12*12 |
| Width | m | - | 1.0-3.2, Customized |
| Length | m | - | 50, 100, Customized |
| Color | - | - | Yellow, Black, Customized |
| Tensile Strength | N/5cm | DIN53354 | 2100/2100 |
| Tear Strength | N/5cm | DIN53356 | 500/500 |
| Adhesion | N/5cm | DIN53357 | 100 |
Detail of product
Packing & Delivery
Packing detail:in roll, wraped with Kraft paper (Pacaking menthod can be changed according to the clients' special requirement)
Delivery Port: Shanghai, Ningbo
Delivery: within 35days after deposit received.
Why choose us
Gaia textile, has worked in the ventilation ducting fabric for 6 years, and our team own decade of exprience. We supply ventilation ducting fabric with pretty competitive price, with high quality and best service. AndOur product is popular in the ventilation system of mining and Tunnel, in European,Australia, South Africa.
Other Product we supply
We supply all kinds of fabric customized, weight 350-2100gsm(10-62oz),yarn 200-2000d, features with anti-uv, FR, anti-mildew, anti-static, acylic/pvdf treated, etc, such as for flexible ventilation ducting, tent, inflatable boat, tension structure, pool liner, transportation tarp, flexible bladder tank, inflatable, private fence,and so on,with high quality and best service.
