PVC Coated Mesh Fabric Pvc Vinyl Waterproof Roll（1000D×1000D 12×12 320G）
2026-01-03
Blog
Product Professional Knowledge Explanation:
This is not a simple plastic cloth, but a precise composite functional material. Its core is woven with high-strength polyester fibers (providing tear resistance and structural support), and then covered with PVC coating on both sides through precision technology.

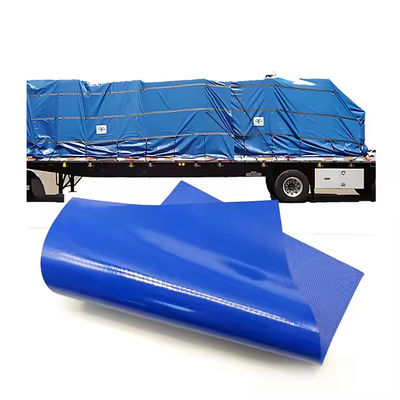

This PVC coating not only seals all the mesh holes, but also provides complete waterproof and moisture-proof properties, giving the originally soft mesh wear resistance, oil resistance, aging resistance, and UV resistance.The coating process combines PVC and mesh fabric, avoiding delamination and peeling. So, it can be used as a sturdy and durable material in outdoor and industrial environments, such as truck tarpaulins, construction site fences, or storage covers
PVC coated mesh cloth selection guide:
1.intensity index:Grid density and grammage
(1)Lightweight protection (such as temporary covering): Optional 500D and below, weight 200-250G.
(2)Heavy industry (such as truck canopy, construction site fence): 1000D × 1000D, 12 × 12 weaving, with a weight of 320G or more, should be selected. It has good tensile and tear resistance performance.
2.Durability key: PVC coating thickness and process
(1)The double-sided coating of the high-quality product is uniform, with a total thickness of ≥ 0.18mm, ensuring complete waterproofing and aging resistance.
(2)Long term outdoor use requires confirmation of its UV resistance level. Commercial grade products typically have an outdoor lifespan of 3-5 years.
3.Practical advice
(1)Request samples: Measure its flexibility, weight, and waterproofness.
(2)When comparing prices, products with a low unit price may experience shrinkage on the base weight or coating, affecting their actual service life, based on weight and thickness calculations.
User feedback on actual application
Customer Mr. Zhang: "I used ordinary waterproof cloth before, but it broke in half a year. This time, I chose 1000D/320G PVC mesh cloth for the truck canopy. Is there a big difference in strength.
Reply: The data comparison is obvious. The tensile strength of ordinary fabric is usually between 600-800N, while the longitudinal and transverse tensile strength of 1000D mesh fabric can reach over 2000N, with a tear resistance improvement of about 70%. The combination of high-strength weaving and PVC double-sided coating enables the product to withstand sustained wind pressure and friction during actual transportation.
Another customer: "Will the waterproof performance decrease after one year of outdoor use.
Reply:When the thickness of high-quality PVC coating is ≥ 0.18mm, after accelerated aging testing (equivalent to two years outdoors), its waterproof performance retention rate still exceeds 95%. It is recommended to confirm the UV protection level when purchasing and regularly clean the surface to maintain the best waterproof and durability state
Multiple feedbacks indicate that after standardized installation, this material can maintain stable protective performance for 3-5 years under moderate weather conditions, significantly reducing replacement costs.
Company Backround:
Zhejiang Hanlong New Materials Co.,Ltd.
Was established in 2016.It is a modern enterprise engaged in industrial fabric research and development,design,production,and sales.
The company has introduced advanced coating and laminating production lines, -mainly producing PVC,PET,TPU,TPO,and other sandwich materials used in tents,membrane structures,airtightness,luggage,protection,medical,and other fields.
