Product Details:
Payment & Shipping Terms:
|
| Features: | Tear-Resistant, Flame Retardant | Material: | 100% Polyester & PVC |
|---|---|---|---|
| Supply Type: | Make To Order | Coated Type: | PVC Coated |
| Technics: | Woven | Weight: | 700g/m2 |
| Yarn: | 1000d*2000d | Density: | 20*10 |
| Color: | Yellow, Black, Customized | Product Name: | PVC Ventilation Duct, Flexible Duct |
| Highlight: | 1.E8 Grade PVC Ventilation Ducting,Mining Anti Static PVC Ventilation Ducting,700gsm pvc hvac duct |
||

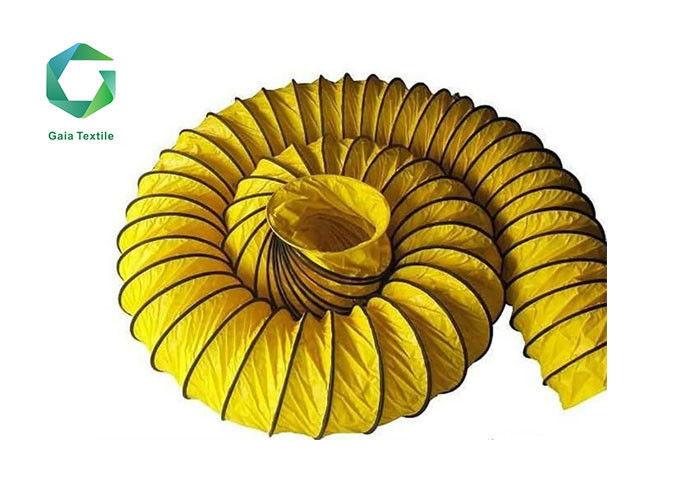

700gsm mining flame retardant 1.e8 grade anti-static vinyl coated fabric for PVC ventilation ducting
Mine / tunnel ventilation pipeline is an infrastructure for air circulation and reducing the concentration of harmful gases in mine / tunnel. It is the most basic equipment in mine / tunnel ventilation engineering. At present, the mine / tunnel ventilation pipe is mainly made of coated cloth material, which has excellent properties of flame retardant and antistatic, good waterproof, air tightness, convenient installation, easy cleaning and economical and practical. Our products are exported to Europe, Australia, South Africa and other countries and regions, good quality, excellent service, in the industry has won a high reputation.
Tear resitance
waterproof
heat-resisting
cold tolerance
1. cost is much lower than steel ventilation ducts
Easy 2. installation, shorter working hours than steel ventilation ducts
3. light weight, good strength
4. flame retardant antistatic property
5. economy, environmental protection, easy to clean, recyclable
6. non-toxic, no odor, no dust, no broken fiber
7. no leakage, wear resistance, wind resistance, good compressive strength
Technical Date sheet
| Description | Unit | Test Method | Value |
| Total Weight | g/m² | DIN53352 | 700 |
| Base Cloth | Denier | ASTMD751 | 1000*2000 |
| Density | Thread/ inch | - | 20*10 |
| Width | m | - | 1.0-3.2, Customized |
| Length | m | - | 50, 100, Customized |
| Color | - | - | Yellow, Black, Customized |
| Tensile Strength | N/5cm | DIN53354 | 2700/2500 |
| Tear Strength | N/5cm | DIN53356 | 240/500 |
| Adhesion | N/5cm | DIN53357 | 100 |

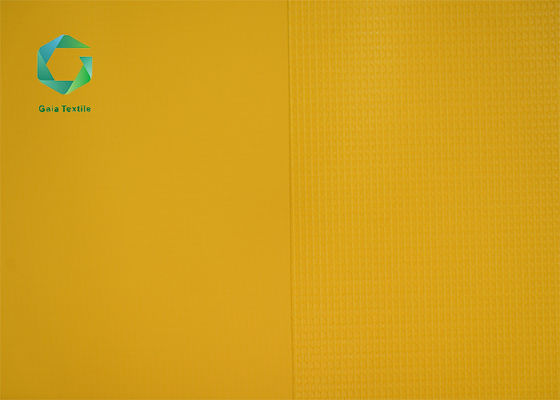

Detail of product
Packing & Delivery
Packing detail:in roll, wraped with Kraft paper (Pacaking menthod can be changed according to the clients' special requirement)
Delivery Port: Shanghai, Ningbo
Delivery: within 35days after deposit received.
Why choose us
Gaia textile, has worked in the ventilation ducting fabric for 6 years, and our team own decade of exprience. We supply ventilation ducting fabric with pretty competitive price, with high quality and best service. AndOur product is popular in the ventilation system of mining and Tunnel, in European,Australia, South Africa.
Other Product we supply
We supply all kinds of fabric customized, weight 350-2100gsm(10-62oz),yarn 200-2000d, features with anti-uv, FR, anti-mildew, anti-static, acylic/pvdf treated, etc, such as for flexible ventilation ducting, tent, inflatable boat, tension structure, pool liner, transportation tarp, flexible bladder tank, inflatable, private fence,and so on,with high quality and best service.
