| Features: | Tear-Resistant, Anti-UV, Flame Retardant, Acrylic | Material: | 100% Polyester & PVC |
|---|---|---|---|
| Supply Type: | Make To Order | Coated Type: | PVC Coated |
| Technics: | Woven | Weight: | 1350g/m2 |
| Yarn: | 1000d*1500d | Density: | 44*28 |
| Color: | Customized | Product Name: | Tension Structure, Fabric Structure, Tensile Membrane |
| Highlight: | 1350gsm PVC Membrane Structure,Fabric Tension PVC Membrane Structure,Architecture anti UV tension membrane structure |
||
1350gsm vinyl coated fabric tension architecture PVC membrane structure

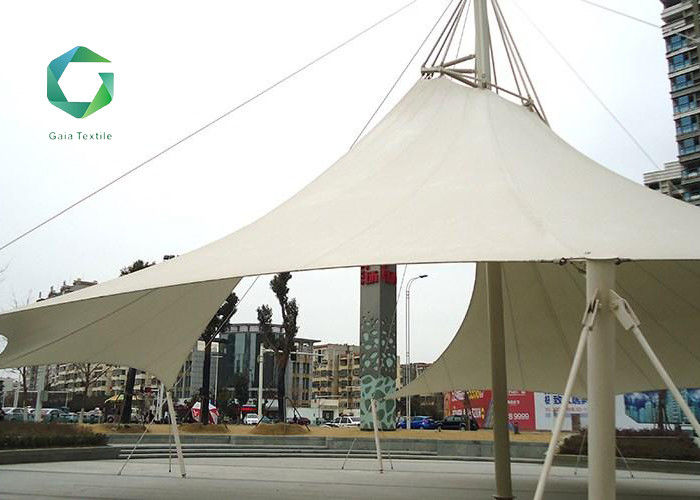

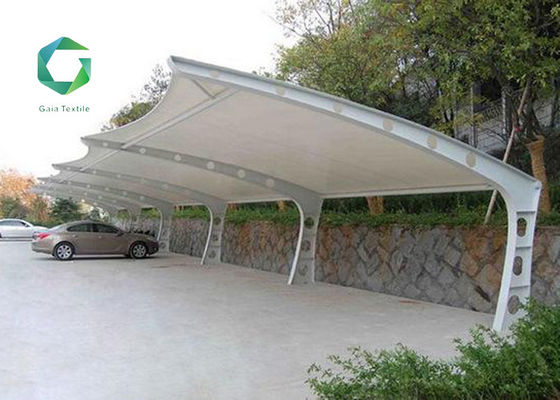

1. PVC building membrane material is a membrane building material popular in recent years. It is commonly used in parking shed, landscape architecture, commercial center and entertainment square. It is also widely used in various shapes, flexible design and rich artistic expression forms, and often becomes landscape architecture on the surface. The material is made of high strength polyester base and PVC coating, UV resistance, antibacterial and mildew proof, good flame retardant, through the acrylic table, the surface is smooth and easy to clean. It is the first choice material for shading buildings in modern public places.
1. High strength, the tensile strength is basically above 4000N/5cm, the fabric made of ultra-high-strength base fabric, the tensile strength can reach 8000N/5cm
2. Simple maintenance, UV resistance, antibacterial and mildew proof, durable, acrylic surface, strong self-cleaning ability
3. Unique shape, large space for design and high artistic quality
4. The limitation is small, the structure is simple, and it can be applied to various public places
5. Good lighting, environmental protection and low energy consumption
Technical Date sheet
| Description | Unit | Test Method | Value |
| Total Weight | g/m² | DIN53352 | 1350 |
| Base Cloth | Denier | ASTMD751 | 1000*1500 |
| Density | Thread/ inch | - | 30*30 |
| Width | m | - | 3.0m, Customized |
| Length | m | - | 100m, Customized |
| Color | - | - | Customized |
| Tensile Strength | N/5cm | DIN53354 | 6000/5500 |
| Tear Strength | N/5cm | DIN53356 | 800/600 |
| Adhesion | N/5cm | DIN53357 | 140 |
Detail of product
Packing & Delivery
Packing detail:in roll, wraped with Kraft paper (Pacaking menthod can be changed according to the clients' special requirement)
Delivery Port: Shanghai, Ningbo
Delivery: within 35days after deposit received.
Why choose us
Gaia textile, has worked in the tent fabric for 6 years, and our team own decade of exprience. We supply tent with pretty competitive price, and high quality and best service. Now our product is popular in the field of commercial and event, in European, Middle East, South Africa.
Other Product we supply
We supply all kinds of fabric customized, weight 350-2100gsm(10-62oz),yarn 200-2000d, features with anti-uv, FR, anti-mildew, anti-static, acylic/pvdf treated, etc, such as for flexible ventilation ducting, tent, inflatable boat, tension structure, pool liner, transportation tarp, flexible bladder tank, inflatable, private fence,and so on,with high quality and best service.
